製品詳細
起源の場所: 中国
ブランド名: E-link
モデル番号: 商業タイプ：LNK-BSFP-1.25G-3CU工業タイプ：LNK-BSFP-1.25G-L3CU
支払いと送料の条件
最小注文数量: 1個のPC
価格: 交渉可能
パッケージの詳細: カートンパッケージ
受渡し時間: 3〜12営業日
支払条件: L/C、T/T、Western Union、MoneyGram、PayPal
供給の能力: 1000 PCS/月
入力微分インピーダンス: |
90〜110Ω |
データ入力スイング差: |
400〜1800mv |
光学上昇/落下時間（20％〜80％）: |
0.26ns |
平均出力電力: |
-10~-4dBm |
スペクトル幅（RMS）: |
4nm |
中心の波長: |
1260〜1360nm |
入力微分インピーダンス: |
90〜110Ω |
データ入力スイング差: |
400〜1800mv |
光学上昇/落下時間（20％〜80％）: |
0.26ns |
平均出力電力: |
-10~-4dBm |
スペクトル幅（RMS）: |
4nm |
中心の波長: |
1260〜1360nm |
Advantages
¨ Dual data-rate of 1.25Gbps/1.063Gbps operation
¨ 1310nm FP laser and PIN photodetector for 3km transmission
¨ Compliant with SFP MSA and SFF-8472 with simplex SC Receptacle
¨ Digital Diagnostic Monitoring:
Internal Calibration or External Calibration
¨ Compatible with SONET OC-24-LR-1
¨ Compatible with RoHS
¨ +3.3V single power supply
¨ Operating case temperature range of
Commercial: 0°C to +70°C
Industrial: -40°C to +85°C
Overview

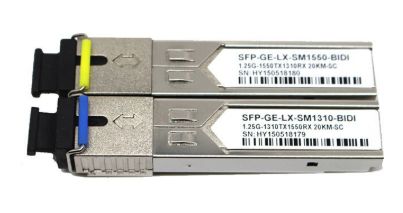

The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 3km transmission distance with SMF.
The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Technical Indexes
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
|
Tx Disable Negate Time |
t_on |
|
|
1 |
ms |
|
Tx Disable Assert Time |
t_off |
|
|
10 |
µs |
|
Time To Initialize, including Reset of Tx Fault |
t_init |
|
|
300 |
ms |
|
Tx Fault Assert Time |
t_fault |
|
|
100 |
µs |
|
Tx Disable To Reset |
t_reset |
10 |
|
|
µs |
|
LOS Assert Time |
t_loss_on |
|
|
100 |
µs |
|
LOS De-assert Time |
t_loss_off |
|
|
100 |
µs |
|
Serial ID Clock Rate |
f_serial_clock |
|
|
400 |
KHz |
|
MOD_DEF (0:2)-High |
VH |
2 |
|
Vcc |
V |
|
MOD_DEF (0:2)-Low |
VL |
|
|
0.8 |
V |
Ordering Information
|
Part Number |
Product Description |
|
LNK-BSFP-1.25G-3CU |
1.25Gbps SFP Bi-Directional Transceiver, 1310TX/1550RX, SC 3km, 0°C~+70°C,With Digital Diagnostic Monitoring |
|
LNK-BSFP-1.25G-L3CU |
1.25Gbps SFP Bi-Directional Transceiver, 1310TX/1550RX, SC 3km,-40°C~+85°C,With Digital Diagnostic Monitoring |
